miniVNA, PC based handheld vector network analyzer

miniVNA is a handheld PC based vector network analyzer for amateur use. As a two-port analyzer, miniVNA can be used for transmission measurement on filter and amplifiers, as well reflection measurement.

对于中国客人,请看这里

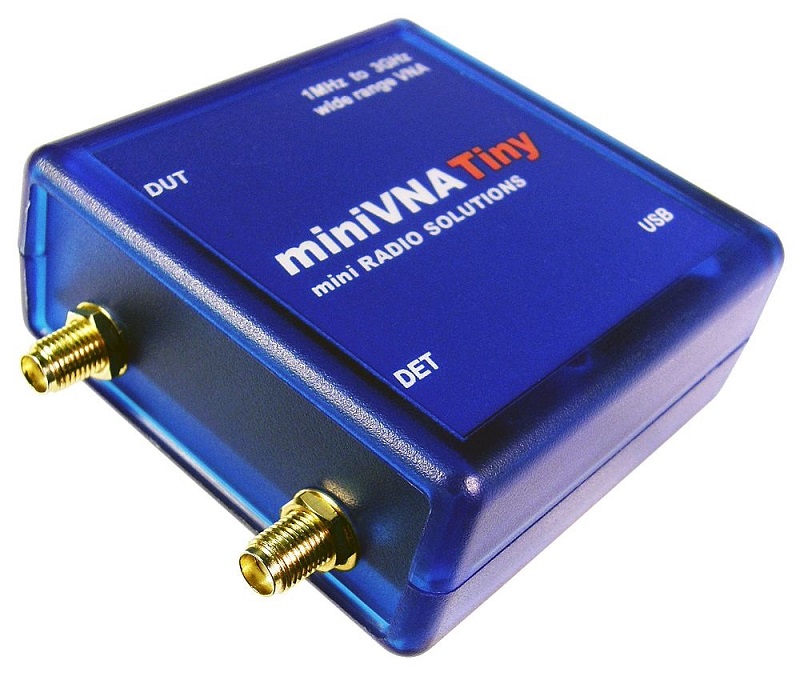

miniVNA Tiny

Very compact vector network analyzer with extended frequency range up to 3GHz.

Please pay your attention on imitation of miniVNA Tiny. Of course, We sell genuine.

miniVNA Tiny

Specifications

- 2 port vector network analyser
- Open/short/load calibration
- Frequency range: 1MHz - 3GHz
- Measurable impedance range: 1 - 1000Ω
- Dynamic range: 70dB@500MHz
- Signal generator: 1channel
- Connector: SMA male x 2
- USB bus powered. current consumption: 370mA
- Size: 66 x 66 x 28mm, Weight:70g

Price: US$559.00
Ship to Asia,Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

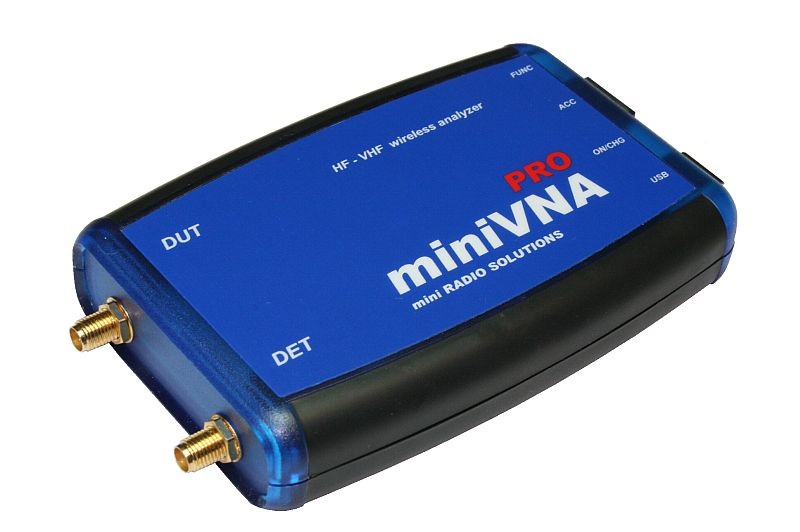

miniVNA PRO

miniVNA PRO is the world's first wireless analyzer. You have not to connect the VNA with PC, so convenient to measure antenna characteristics.

miniVNA PRO from mRS

Specifications

- 2 port vector network analyser
- Open/short/load calibration
- Frequency range: 1MHz - 200MHz
- Measurable impedance range: 1 - 1000Ω
- Dynamic range: 90dB(Reflection measurement),70dB(Transmission measurement)
- Signal generator: 2Channel
- Connector: SMA male x 2
- Bluetooth I/F
- Li-ion battery

Price: US$499.00
Ship to Asia,Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

Application for NFC antenna measurement. Please see P.21(New window will be open).


miniVNA bundle packages

We offer miniVNA with peripheral parts together for those people who use these kind of VNA first ever.

1. miniVNA starter package

Our "starter package" includes;
- Either miniVNA PRO or Tiny,
- Calibration kit(Open, Short, Load)
- SMA plug adaptor(2Pcs.)
- RG-316 cable for THRU calibration (15cm, SMA male)

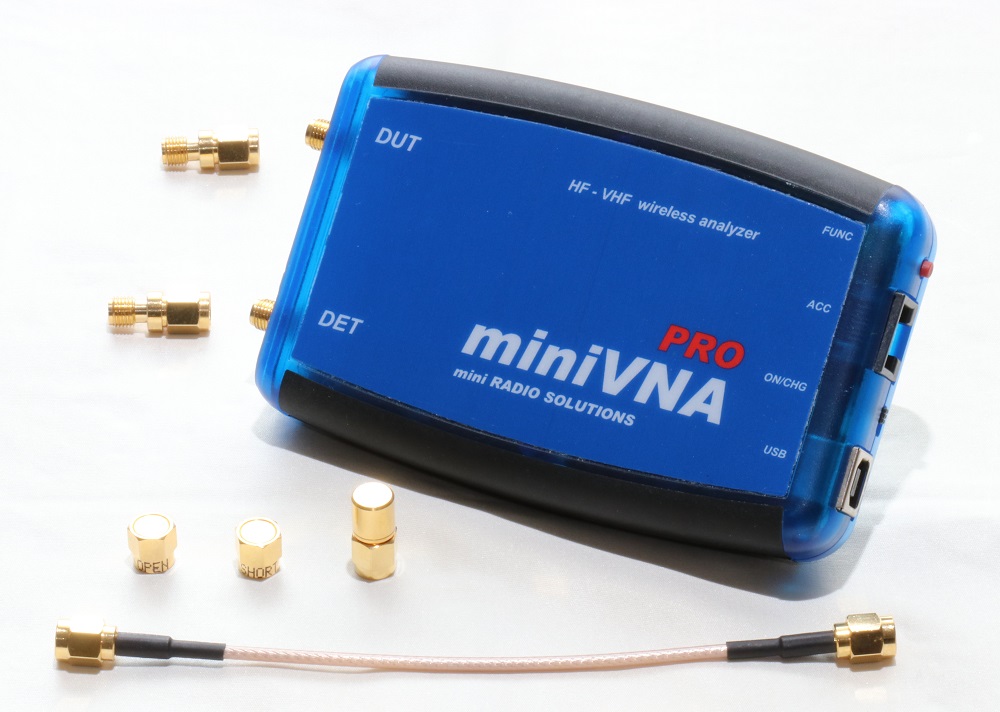

miniVNA starter package (Click to enlarge)
miniVNA Tiny Starter Package miniVNA Pro2 Starter Package

Price: miniVNA Tiny starter package US$599.00
Price: miniVNA PRO starter package US$549.00

Ship to Asia,Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

Buy at our shop in FC2 shopping mall with Paypal payment.


2. miniVNA premium package

In addition to starter package, Our "premium package" includes two attenuators to be able to measure amplitude of amplifier. so includes;
- Either miniVNA PRO or Tiny,
- Calibration kit(Open, Short, Load)
- SMA plug adaptor(2Pcs.)
- Attenuator (10dB x 1, 20dB x 1, DC-6GHz, 1W, SMA connector)
- RG-316 cable for THRU calibration (15cm, SMA male)

Caution:
Please keep enough attenuation with using attenuator properly to avoid overload, in case of measuring amplitude.

Price: miniVNA Tiny premium package US$659.00
Price: miniVNA PRO premium package US$599.00

Ship to Asia,Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

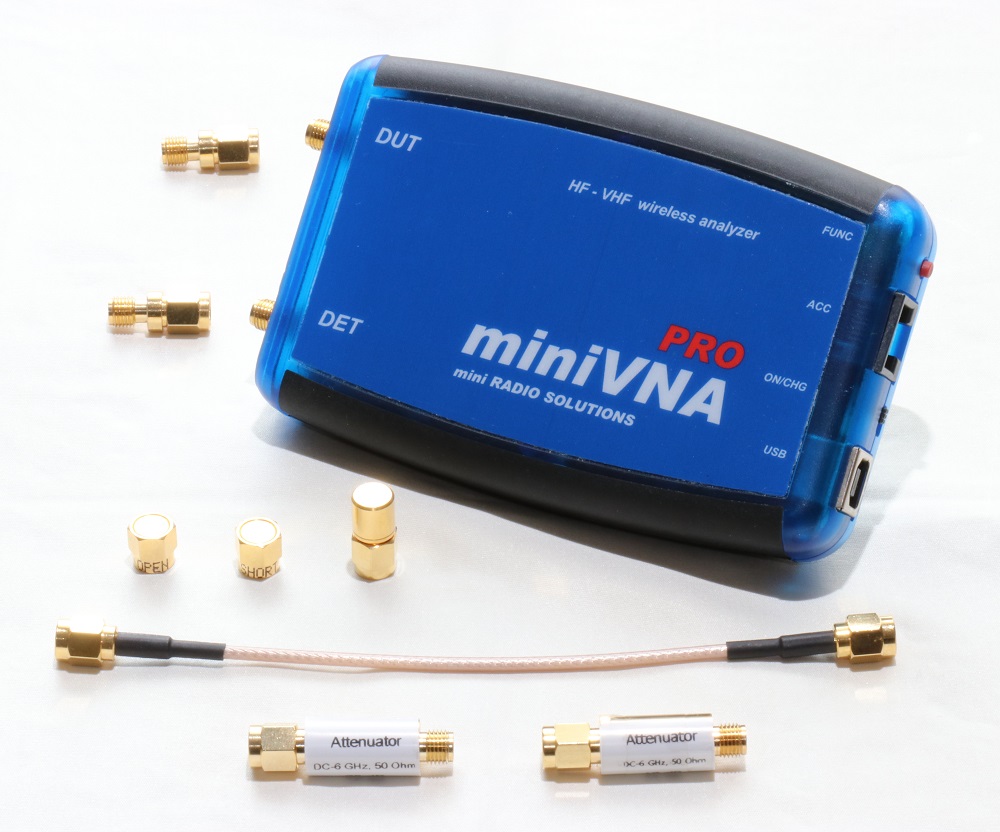

miniVNA premium package (Click to enlarge)
miniVNA Tiny Premium Package miniVNA Pro2 Premium Package attenuator

Applications

vna/J(Freeware, For Windows,MAC)

Features
- Measuremet:Return loss,SWR,Transmission loss,Rs,Xs...
- S Parameter export and import
- Smith chart drawing
- Export data with jpg,excel,pdf format
- Cable length and loss measuremant
- Port Extension
- Beacon


blueVNA(Freeware, For Android OS)

Of course, it works on Android tablet and smartphone.

Features
- Reflection and transmission measurement
- Export function ( S1P, CSV)
- Smith chart drawing
- Cable length measurement
- X'tal measurement (f0,Q)


Links & Download

miniradiosolutions (Manufacturer's website)

vna/J (vna/J developer's site)

miniVNA Tiny Hardware Guide
miniVNA PRO Hardware Guide

vna/J Installation Guide
vna/J User's Guide
User guide for vna/J headless application command line interface. Suitable for automated testing.
miniVNA Tiny Driver Guide
miniVNA PRO Driver Guide

Yahoo Group


miniVNA Pictures

SWR meaurement with miniVNA measurement with Android PDF Export with miniVNA and vna/J Smith chart with vna/J multi tune dialog measurement on Duplexer s11 measurement 2ch SG measurement with BlueVNA

Attn.
manoVNA is not mRS product, nor our selling good.
