USB Tuning Wheel

The most common argument against an SDR (Software Defined Radio or Receiver) was so far: "I need something with real buttons". Even those who already uses an SDR / IF receiver, but every now and then longs for a VFO knob. For this, we now have a good and inexpensive solution. The Tuning Wheel combines the advantages of an analog VFO knob with the various options of a software-based receiver such RadioJet 1102S (also FDM-S2, Perseus SDR, Kenwood TS-590S and TS-990S etc). You get a nice knob with push button function whose Socket can glow even beautiful blue. All functions are programmable and thus even provide direct access to important settings and give you the "analog" feeling that you are missing. The Bonito TuningWheel will be connected via USB to your PC and does not need any extra power supply. Use with iTunes is also available.

USB Tuning Wheel: US$78.00
Ship to Asia/Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

Active Receiving Antenna "Boni-Whip"

Despite its small size (only about 14 cm short), this antenna has excellent receiving results at long-, medium- and short-wave range as well as for VHF up to 300 MHz. At low frequencies, the Boni-Whip is applicable from 10KHz and provids very good receiving results. it is a good choice for receiving the low-frequency .

The antenna is an ideal addition to all short-wave receivers and SDRs. Electric power is supplied via connection cable, the required Bias-Tee is included. All antenna connections are BNC standard.

Because of its interchangeable radiating elements (Whips) the Boni-Whip can be used with different elements for experiments. The antenna can thus be adjusted to the surrounding environment or a special reception area.

- Fequency Range: 20KHz - 300MHz
- Gain: 3dB
- Insertion Loss: Max.1.5dB
- IP3 : +32.5dbm > (Typ.)、IP2 : +55dBm > (Typ.)
- Connector: BNC female
- Power：12-15V DC
- Size：c.a.17cm

Attention
This antenna is supplied without coaxial cable. Please prepare it at customer.

Boni-Whip: US$189.00
Ship to Asia/Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

Boni-Whip Marine Version

For the purpose of marine leisure, Boni-Whip marine version is available.The boards are multi-coated against corrosion. The radiator and the bracket are made of stainless steel. The Marine verision is shiiped with 2 cables. Also suitable for outdoor use.

Boni-Whip Marine Version is including;
- Boni-Whip Marine Antenna
- Bias-Tee
- Mounting Bracket
- 1x 2 Meters Antenna cable with BNC
- 1x 10 Meters Antenna cable with BNC

Boni-Whip Marine Version: US229.00
Ship to Asia/Pacific region for US$12 (except countries and areas designated by Japanese Gov't.)

Active Loop Antenna ML-200

New Megaloop FX is available. Please ask us feel freely.

The MegaLoop ML200 is an active loop amplifier for the range from 9 KHz – 200 MHz. Compared to other competing products with a rigid loop and high power consumption, the antenna can easily be transported which makes its portable use very convenient. The mounting of the loop is done by two stainless steel nuts with M5 thread. This kind of fastening allows for the fastening of other loop forms as well. This antenna works with wide range of DC power from 5 to 15V, so you can use USB as its power. The ML-200 is supplied with a 5 m- loop made of flexible litz wire and DC power injector (Bias T.)

- Freq. Range: 9KHz - 200MHz
- Gain High/Low (Switchable)
- IP3 : +40dbm (Typ.), IP2: +85dBm (Typ.)
- Connector: BNC female
- Power: 5-15V DC(ca.40mA)

Attention
This antenna is supplied without coaxial cable. Please prepare it at customer.

ML-200: US$479.00
Ship to Asia/Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

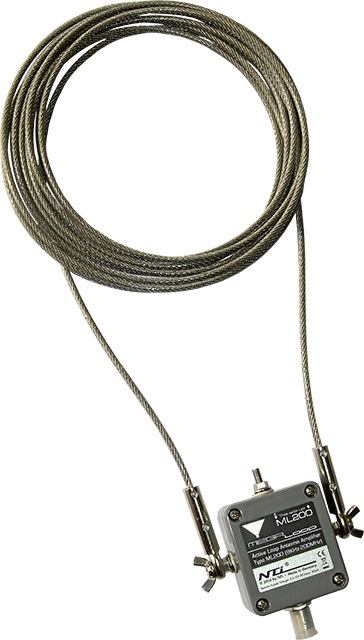

ML-200 with Stainless Antenna Wire

As an alternative of litz wire, thick and salt-water proof, PVC-coated stainless steel wire is available..

ML-200 with stainless antenna wire (5m length): US$529.00
Ship to Asia/Pacific region for US$10 (except countries and areas designated by Japanese Gov't.)

Ultra Wideband Active Antenna GA-3005

Where space is at a premium or you live in an area where an antenna is considered an undesirable element in neighborhood, the new GigActiv GA3005 is the ideal solution for the avid listener with a wide band receiver like SDR Play, Air Spy and so on. The low noise GigActiv 3005 Extreme Wideband Active Antenna covers the whole frequency range from 9 kHz – 3 GHz. The antenna radiator measures only 10 cm and so the unit can be mounted unobtrusively. The antenna requires a supply voltage of 5 –15V DC through the coax cable via the standard supplied DC injectrer. It can also be powered via USB with slightly reduced performance. This is perfect for portable use in combination with a PC, which powers the antenna or the antenna can be powered autonomously and noise-free with a separate USB power bank.

- Freq. Range: 9KHz - 3GHz
- Gain +3dB
- Upper Freq. limit (-1dB): 3GHz
- IP3 : +30dbm (Typ.), IP2: +50dBm (Typ.)
- Connector: BNC female
- Power: 5-15V DC(ca.120mA)

GA-3005: US$559.00
Ship to Asia/Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

Active Antenna Splitter "AntennaJet AAS-300" from Bonito

"AntennaJet AAS300" is splitting the signal from one antenna to 3 different receivers simultaneous. The AntennaJet has a wideband (>300MHz) and ultra low noise amplifier and can share one antenna up to 3 different receivers which can be tuned to fully different Frequencies, without switching the antenna cable or even pressing a button.

Due to the extraordinary high decoupling of the outputs (70dB), interference between the connected receivers is avoided. At the same time, the emission of interference to the antenna is effectively surpressed.

- Frequency Range: 9KHz - 300MHz
- Impedance: 50 Ohm
- Isolation between outputs:
　　　70dB(Typ. up to 1 MHz),
　　　60dB(Typ. up tp 30 MHz),
　　　50dB(Typ. up to 100MHz),
　　　40dB(Typ. up to 300 MHz)
- Amplitude difference of the outputs: max. 0.5dB
- Insertion Loss: Max. 1.5dB
- IP3 : +35dbm(Typ. up to 10 MHz)
- Connector: BNC female
- Power :USB Bus power(50mA)
- Size and weight：115 x 90 x 32mm, c.a.300g

AAS-300: US$349.00-
Ship to Asia/Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)

Active Antenna Switch and Mixer "AntennaJet ASM-300"

ASM-300 is USB-controlled and you can connect up to three different receiving antennas from 9 kHz - 300 MHz loss-free to one output socket.

Additionally, you can combine all three input channels according to your needs. They are then connected in phase to the output socket. Thus you can always find the best combination of antennas when receiving conditions are bad.

- Frequency Range: 9KHz - 300MHz
- Impedance: 50Ω
- Insulation between the inputs:
　　　80dB(Typ. up to 0.3MHz) 、
- Insulation between outputt and input:
　　　110dB(Typ. Up to 0.3MHz) 、
- IP3 : +40dBm(Typ. up to 10MHz), +20dBm(Typ. up to 100MHz）
- Connectors: BNC female
- Power connector: USB- B socket
- Size and weight: 115 x 90 x 32mm, c.a.300g

ASM-300: US$379.00
Ship to Asia/Pacific region and North America for US$10 (except countries and areas designated by Japanese Gov't.)
